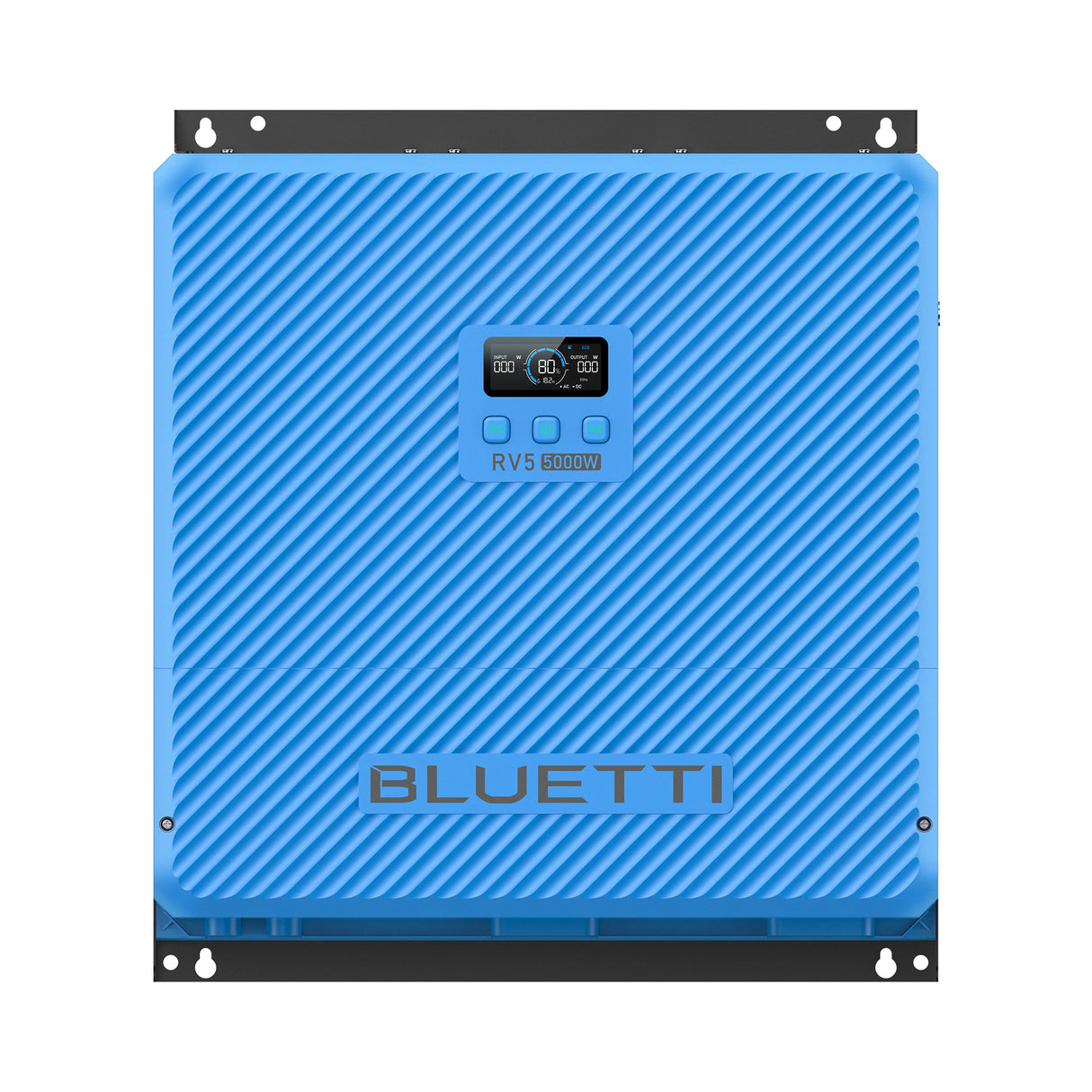

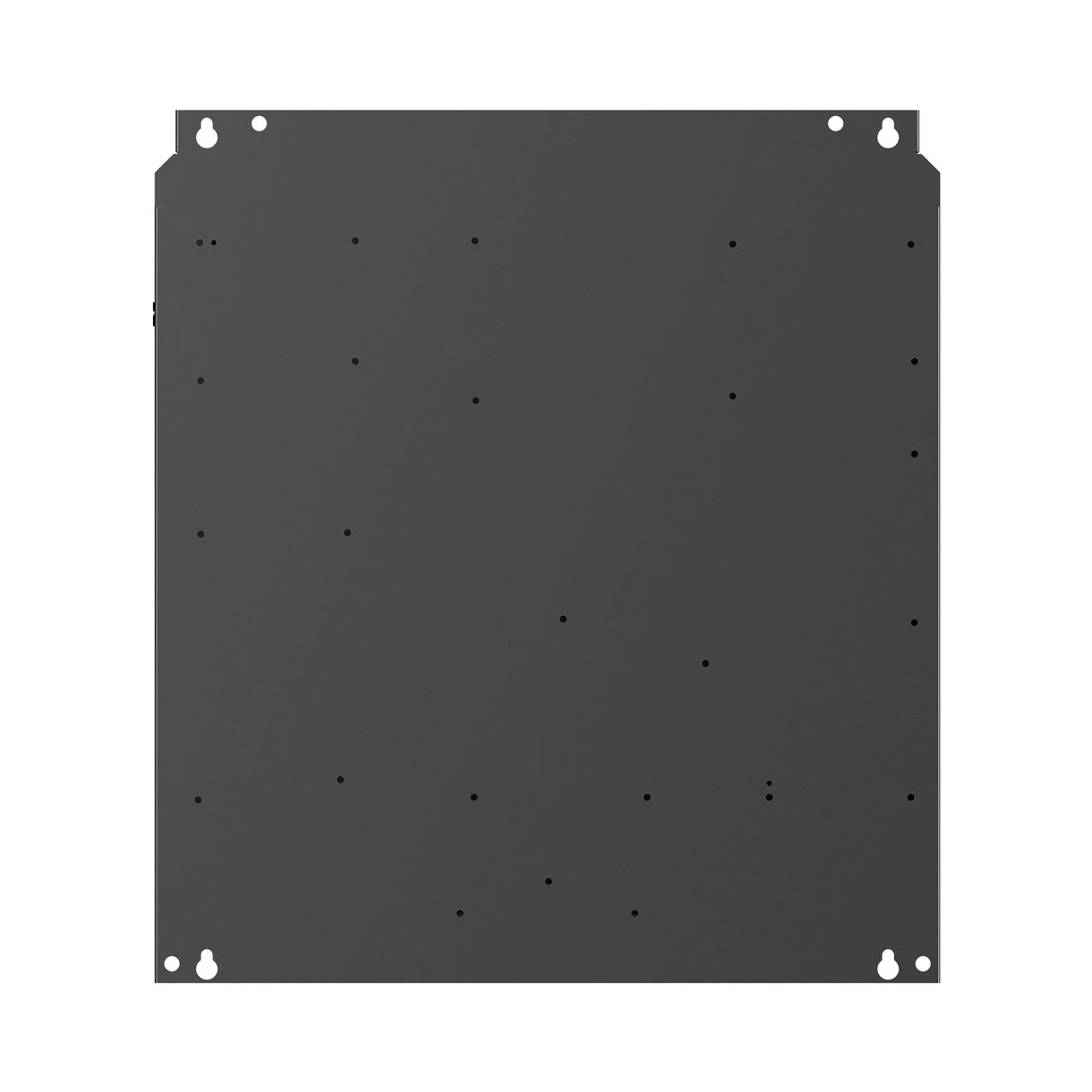

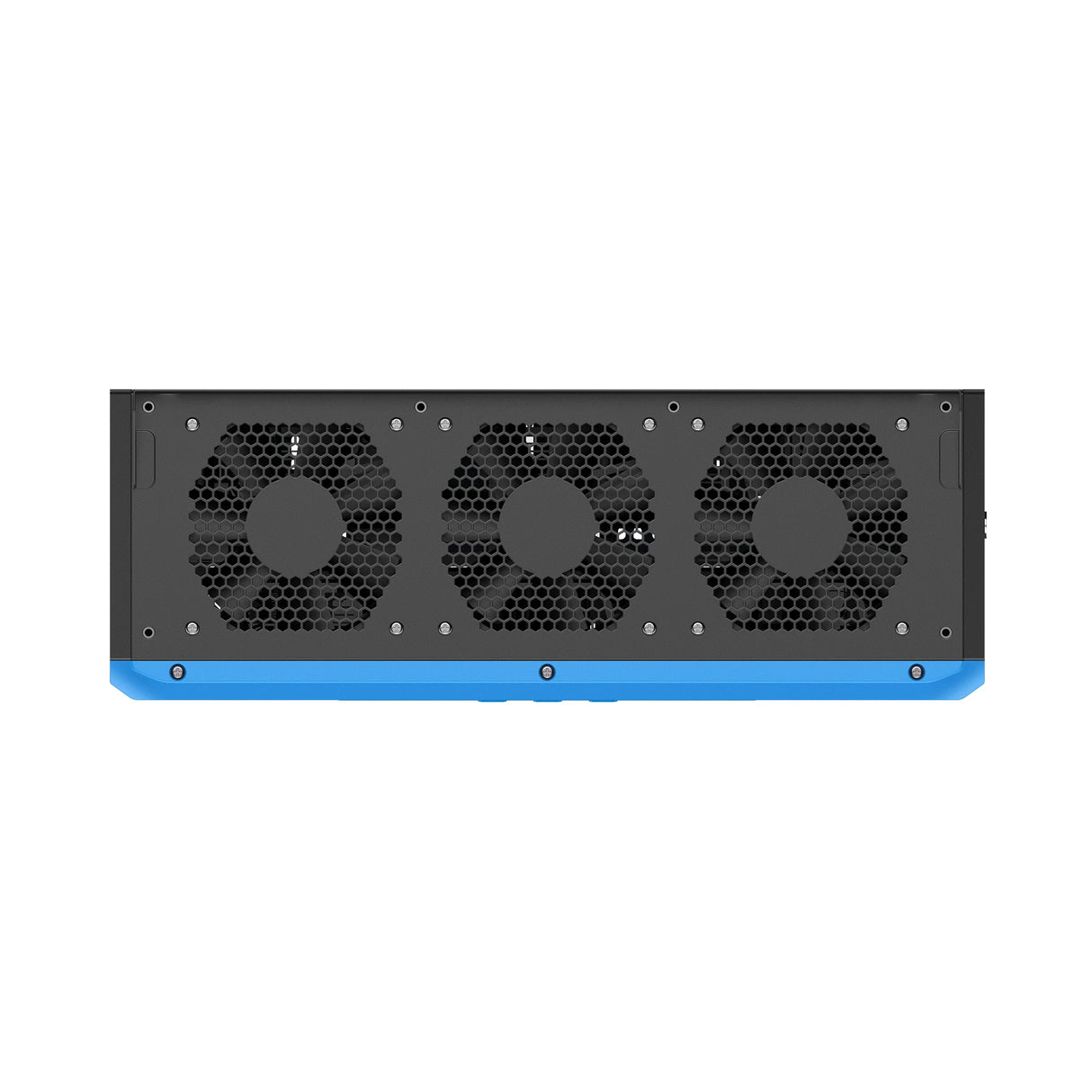

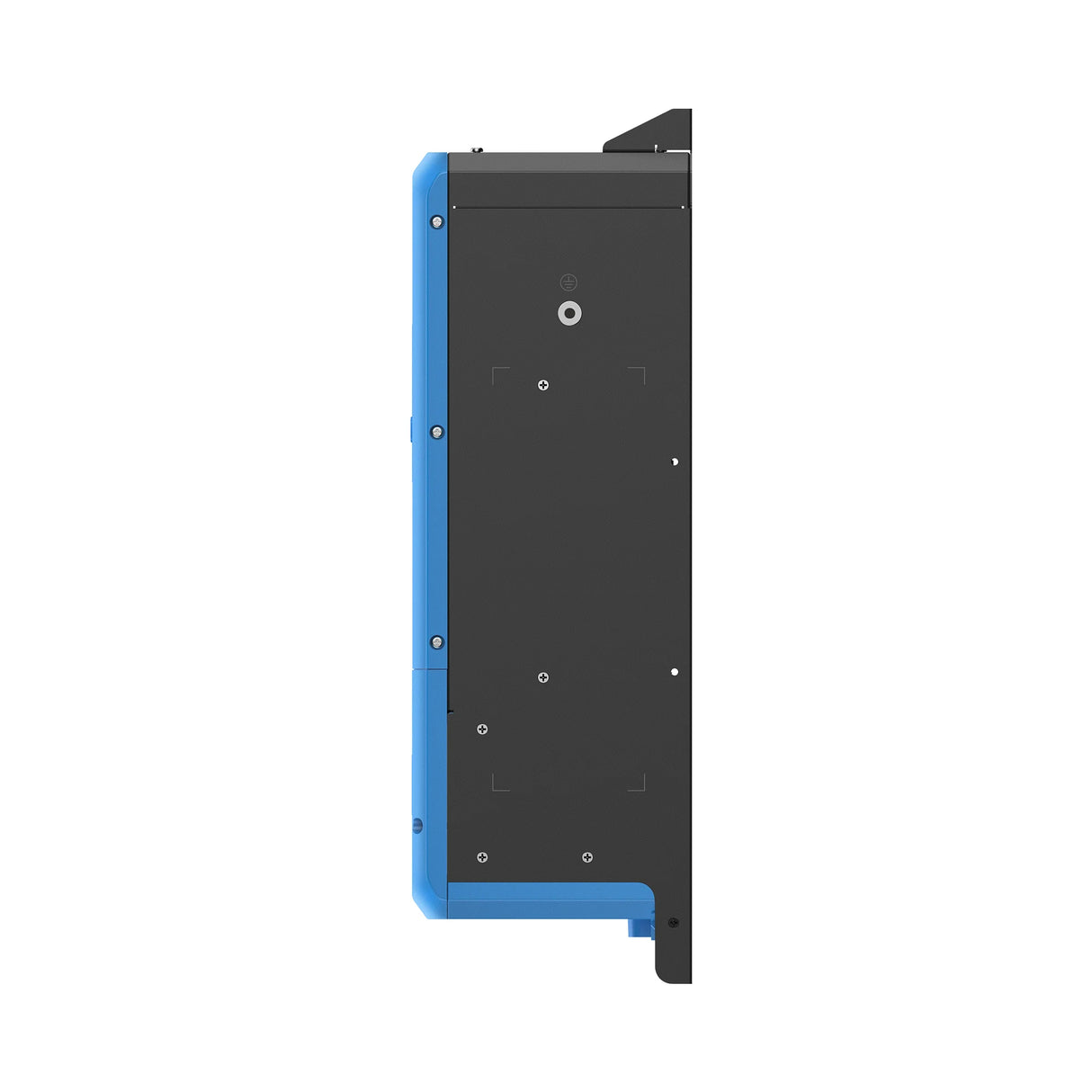

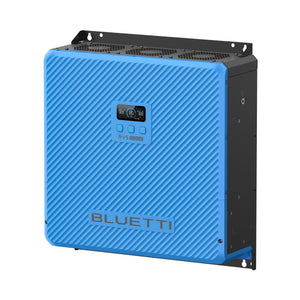

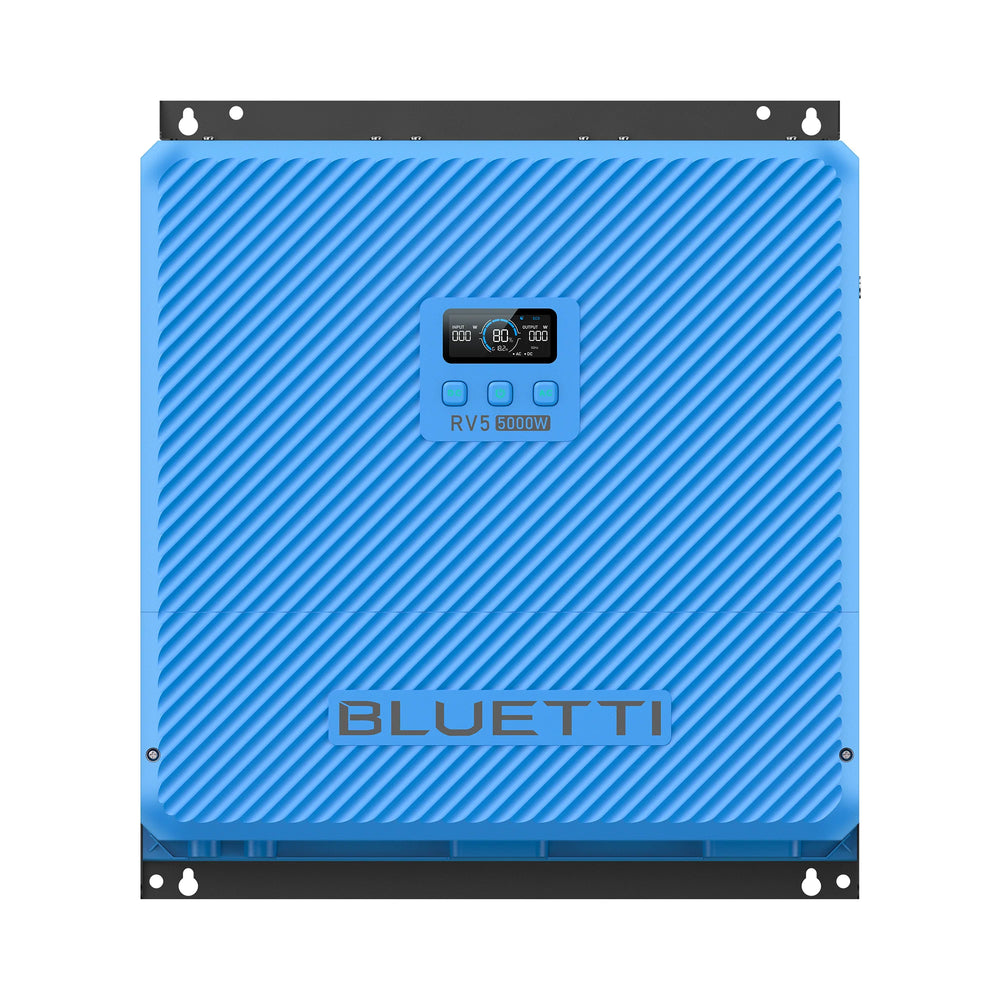

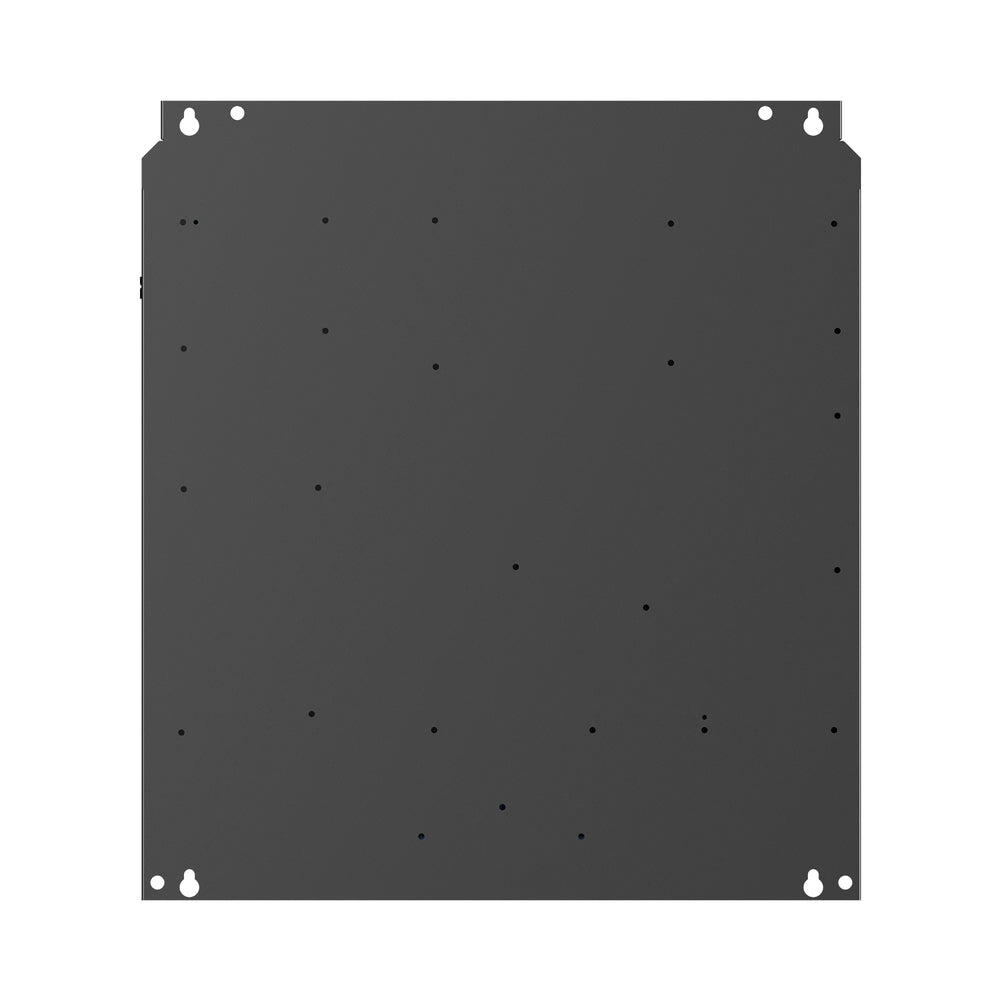

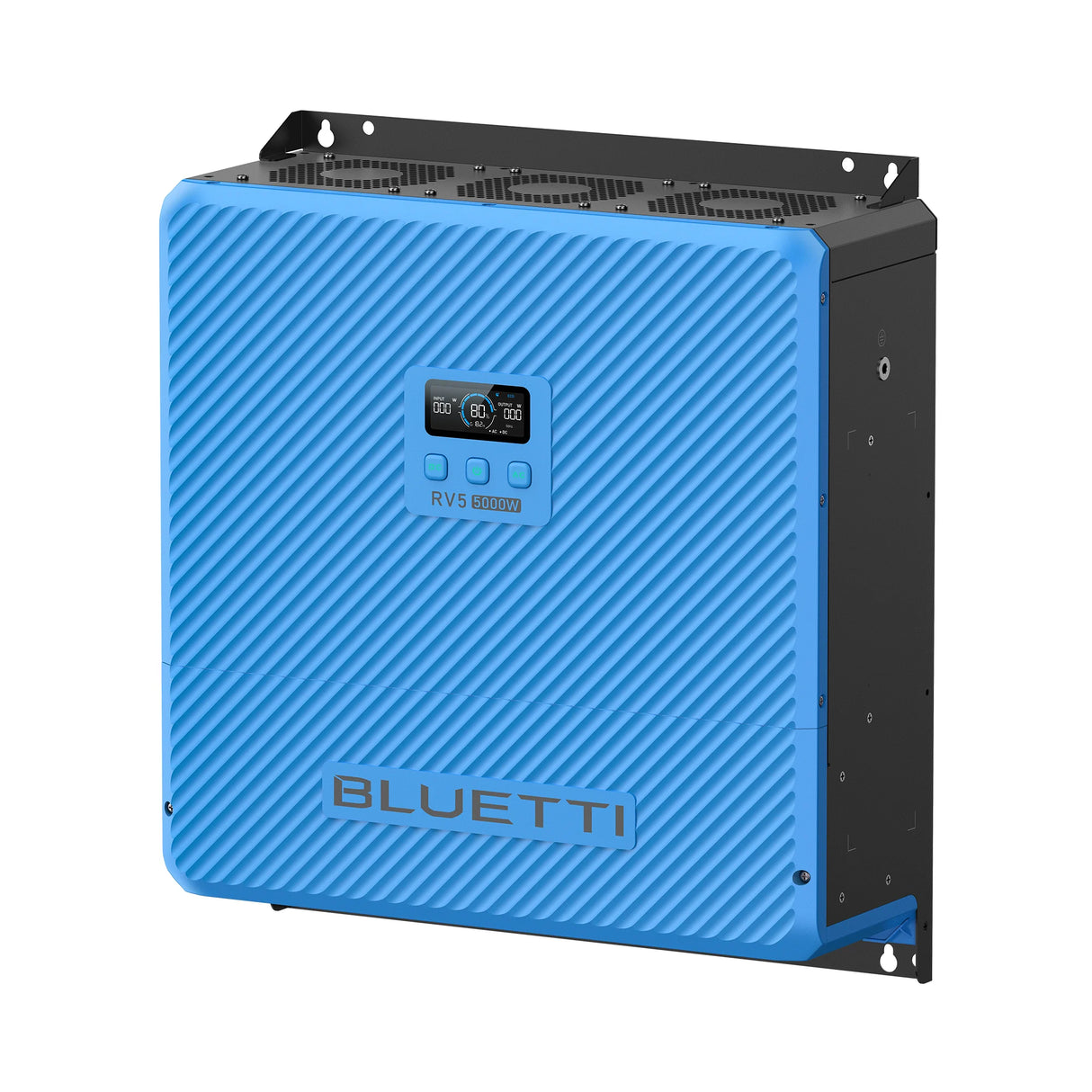

The BLUETTI RV5 is an all-in-one RV power hub that replaces a separate inverter, inverter charger, solar charge controller, alternator charger, DC system, and protection unit with a single integrated platform. It delivers 5,000W continuous AC output (10,000W surge) plus 1,620W DC output, enough to run an A/C, fridge, water pump, and electronics simultaneously. It charges from shore power, solar, the vehicle alternator, a generator, or an EV charger (cable sold separately), reaching 0–80% in about 50 minutes via shore power. Built with an IP65-rated, vibration-resistant design that runs under 50dB, it's designed for beginner-friendly DIY installation with pre-labeled wiring, and is monitored through the Epad touchscreen or the BLUETTI app.
Key Features
-
All-in-One RV Power System: Simplifies RV energy setup into one integrated unit.
-
Fast Installation: Pre-wired, pre-labeled design; no electrician required for most installs.
-
Built for the Road: Handles vibration, heat, and rain; quiet (under 50dB) when parked.
-
5,000W Continuous Output: Runs multiple appliances at once; 10,000W surge.
-
Charge Anywhere: Shore power, solar, alternator, generator, or EV charger; 0–80% in ~50 minutes via shore power.
-
Full System Monitoring: Battery status, power usage, charging inputs, and system health via Epad touchscreen or BLUETTI app.
Specifications
| AC Output |
5,000W continuous, 120V/42A; 10,000W surge |
| DC Output |
1,620W |
| Rated Output Voltage |
12V/24V (battery-side) |
| Total Load Power |
Up to 6,000W max (varies by battery type/quantity) |
| Charging Sources |
Shore power, solar, vehicle alternator, generator, EV charger (cable sold separately) |
| Charge Time (Shore Power) |
0–80% in ~50 minutes (varies by conditions) |
| Noise Level |
Under 50dB |
| Battery Ingress Rating |
IP65 (battery component) |
| Build |
Vibration-resistant for on-road use |
| Monitoring |
Epad touchscreen (sold separately) or BLUETTI app |
| Compatible Battery |
BLUETTI B4810 (51.2V, 100Ah LiFePO4), sold separately; third-party 12V systems may require additional hardware, e.g. B1210 for high-startup-current 12V auto-leveling systems |
In the Box
- RV5 Power Hub x 1
- M8 Wood Screw x 8
- Anchor x 8
- Drilling Template x 1
- User Manual x 1
