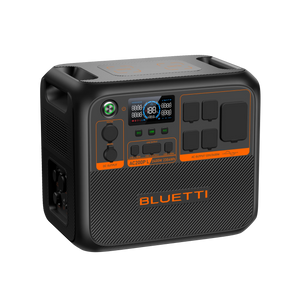

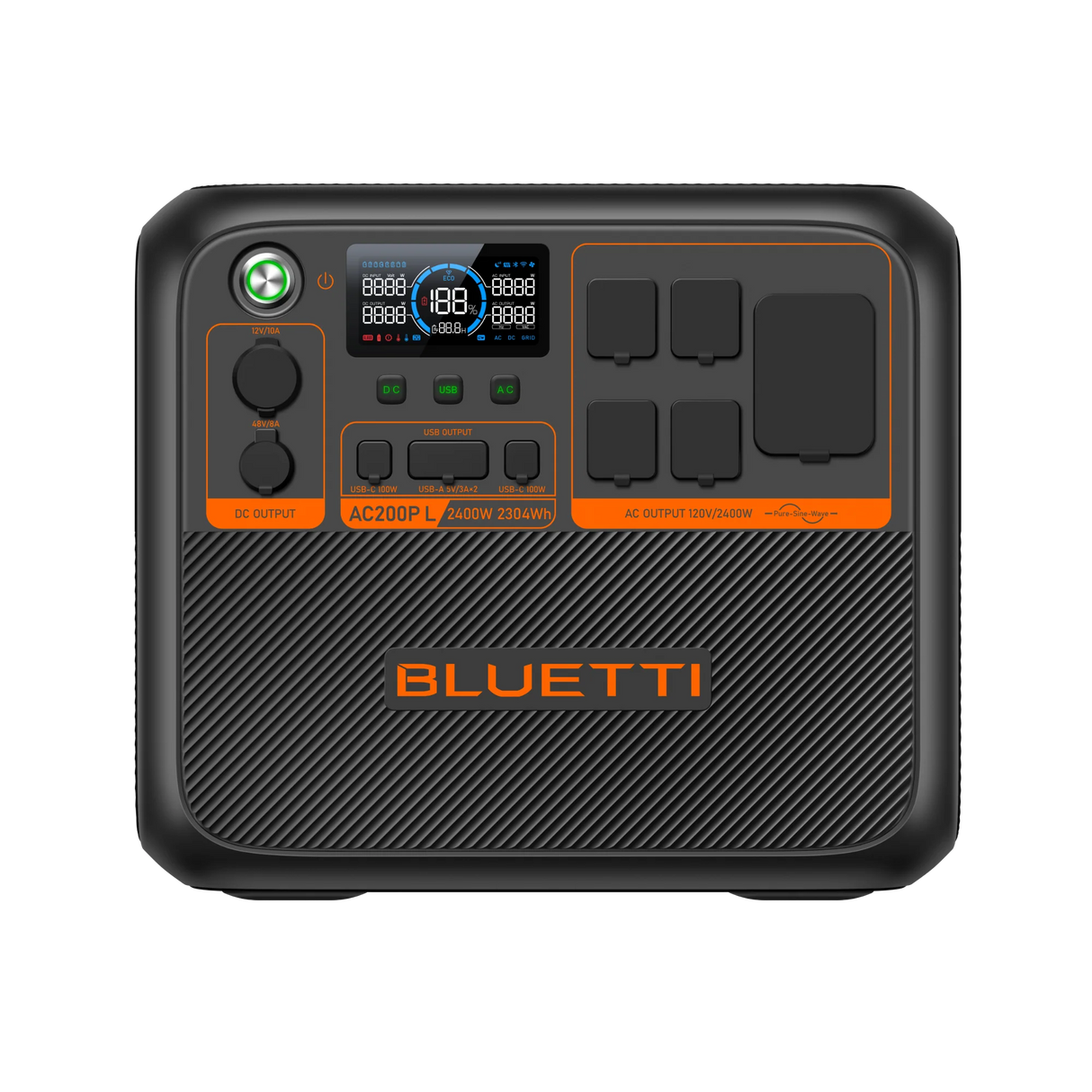

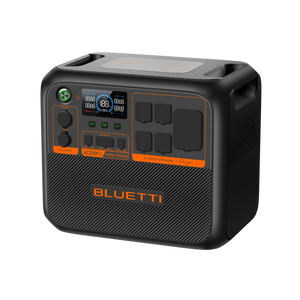

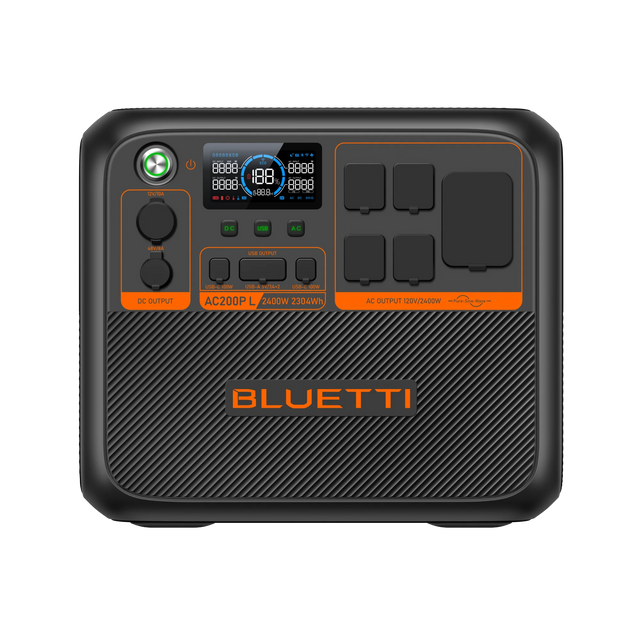

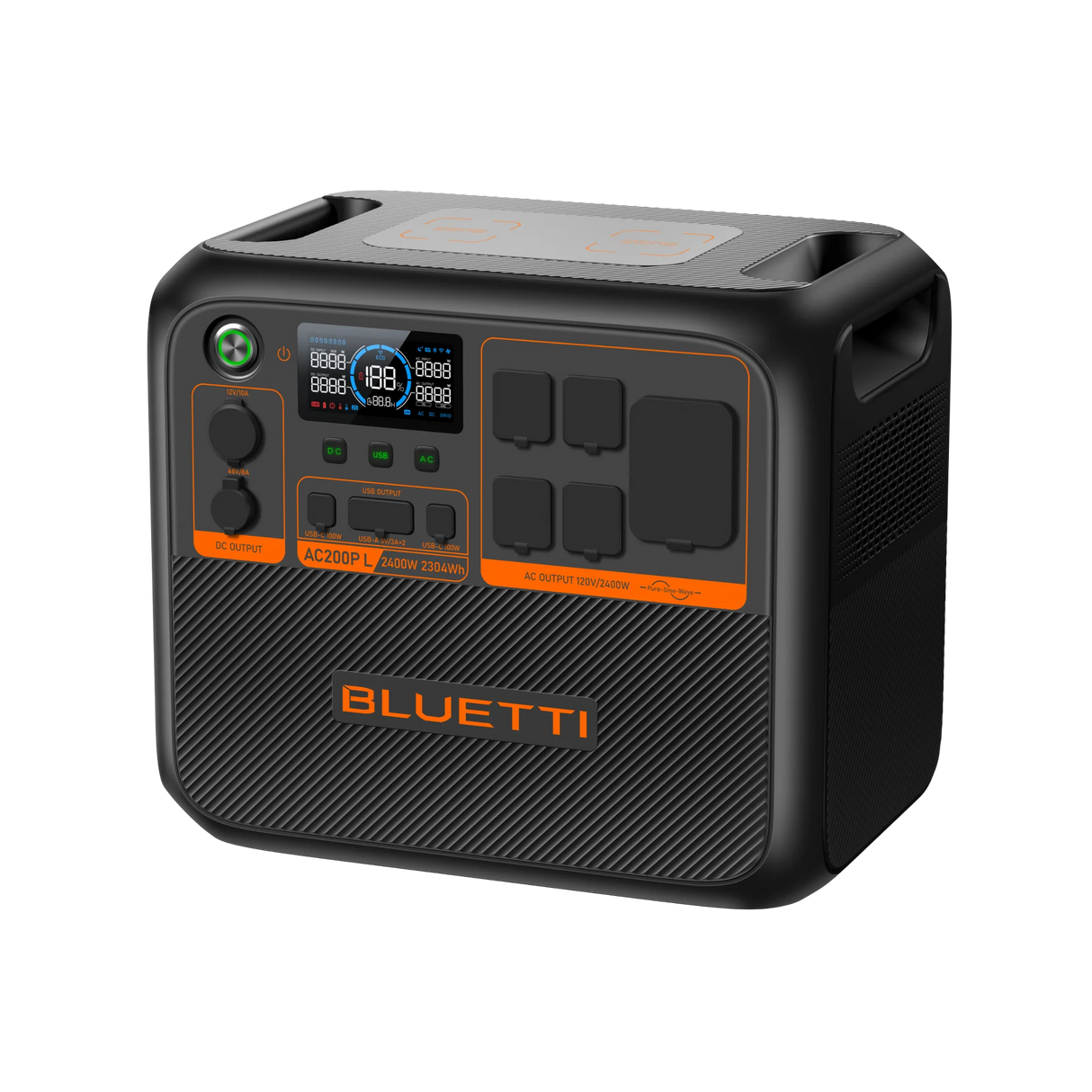

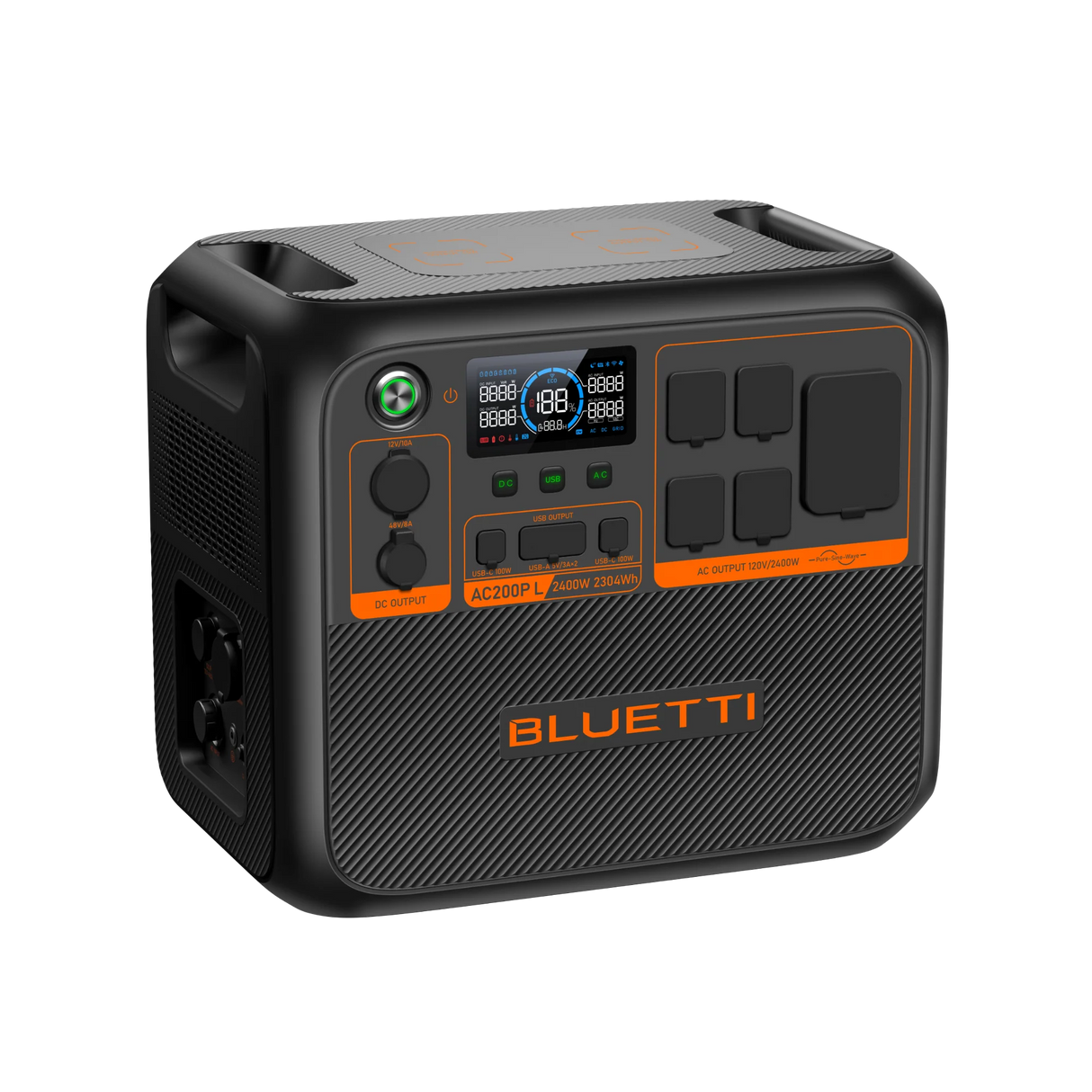

The BLUETTI AC200P L is an expandable, RV-ready power station with 2,304Wh of LiFePO4 capacity and 2,400W of continuous output (3,600W in Power Lifting Mode). It charges to 80% in about 1 hour via 2,400W Turbo Charging, accepts up to 1,200W of solar input, and can expand up to 8,448Wh total capacity with B210P, B230, or B300 expansion batteries. A built-in NEMA TT-30 RV outlet lets it power an RV directly, making it suited for RV life, home backup, or off-grid use.
Key Features
-
Super-Fast Charging: 80% capacity in just 1 hour.
-
Expandable up to 8kWh: Compatible with B210P, B230, and B300 expansion batteries.
-
2,400W Rated Power: Meets the needs of most RV or home loads; Power Lifting Mode boosts to 3,600W.
-
Plug-and-Play RV Power: Built-in TT-30 port powers an RV directly.
-
RV Voltage Regulator Compatible: Optional D40 Voltage Regulator (sold separately) charges 12V house batteries.
-
Flexible Charging: AC, solar, car charger, generator, or lead-acid batteries.
Specifications
Battery
| Capacity |
2,304Wh |
| Type |
LiFePO4 (Lithium Iron Phosphate) |
| Life Cycles |
3,000+ cycles to 80% original capacity |
| Shelf Life |
Recharge to 80% every 3–6 months |
| Management System |
MPPT controller, BMS, etc. |
Output
| AC Outlets |
4 x 120V/20A + 1 x 120V/30A NEMA TT-30; 2,400W total |
| Inverter Type |
Pure Sine Wave |
| Power Lifting Mode |
3,600W |
| Surge Power |
3,600W |
| USB-C |
2 x 100W max |
| USB-A |
2 x 18W (each port) |
| 12V DC Outlet |
1 x 12V/10A (regulated car outlet) |
| 48V DC Outlet |
1 x 48V/8A (RV outlet) |
| Wireless Charging Ports |
2 x 15W |
Input
| AC Power Input (Turbo Mode) |
2,400W max |
| Solar Input |
1,200W max, 12–145VDC, 15A |
| Car Input |
12/24V from cigarette lighter port |
| Max Input |
2,400W |
Recharge Times
| AC Charging Cable (2,400W Turbo) |
~1.5 hours |
| Solar Panel(s) (1,200W) |
~2.5 hours (ideal conditions) |
General
| Pass-through Charging |
Yes |
| Weight |
~63.5 lbs / 28.8 kg |
| Dimensions (L x W x D) |
420 x 280 x 366.5 mm / 16.5 x 11 x 14.4 in |
| Charging Temperature |
0°C–40°C / 32°F–104°F |
| Discharging Temperature |
-20°C–40°C / -4°F–104°F |
| Storage Temperature |
-20°C–40°C / -4°F–104°F |
| Certifications |
UN38.3, UL, FCC, IC, CE, ROHS, TELEC, PSE, RCM, LOA |
| Warranty |
5 years |
Optional Expansion
Compatible with B210P, B230, and B300 expansion batteries for up to 8,448Wh total capacity (sold separately).
In the Box
- BLUETTI AC200P L Portable Power Station x 1
- AC Charging Cable x 1
- DC Input Cable x 1
- Solar Charging Cable x 1
- Car Charging Cable x 1
- Grounding Screw x 1
- User Manual x 1
- Warranty Card x 1
