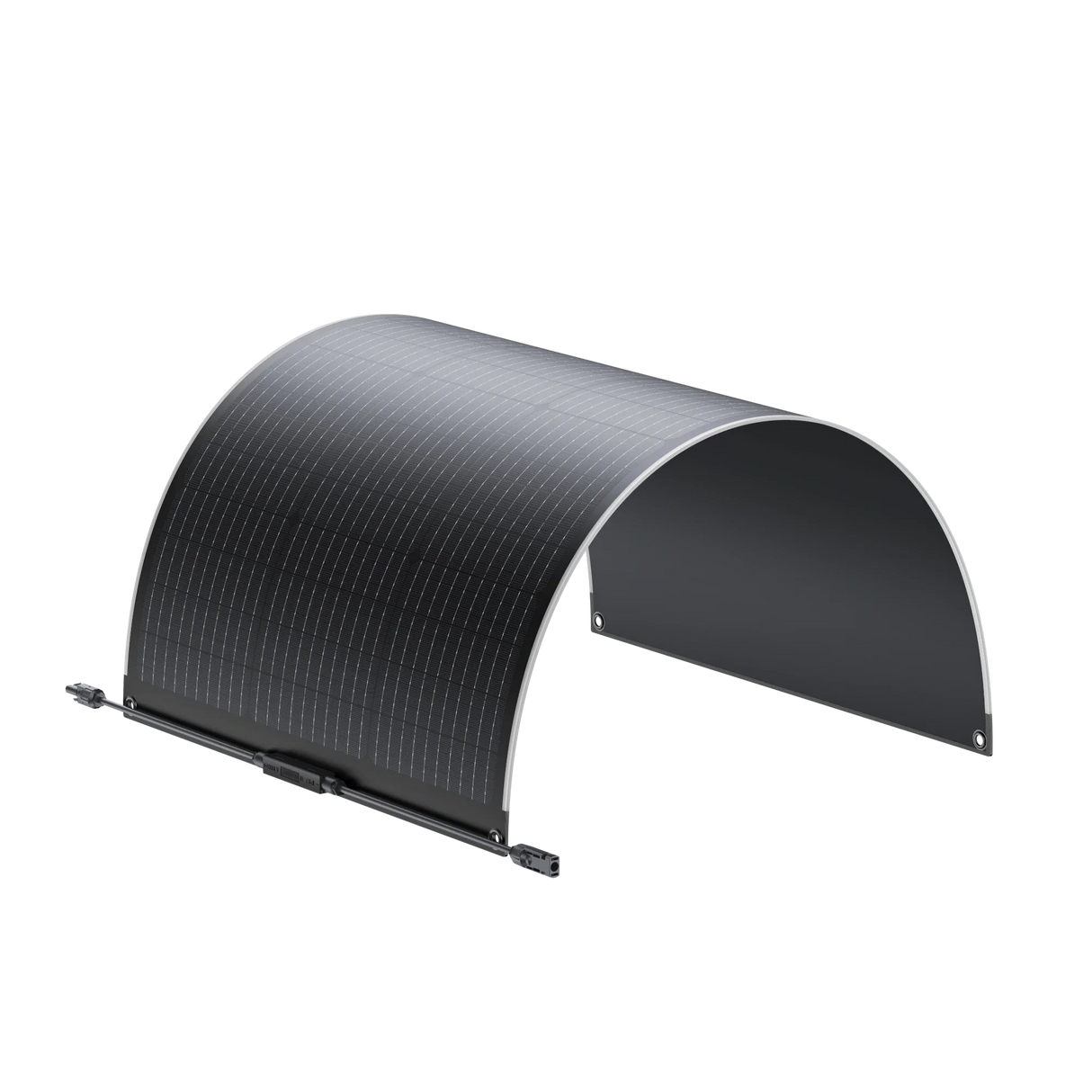

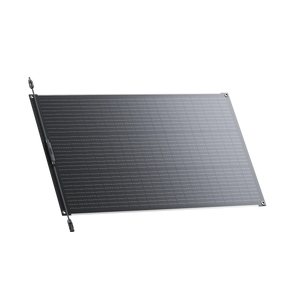

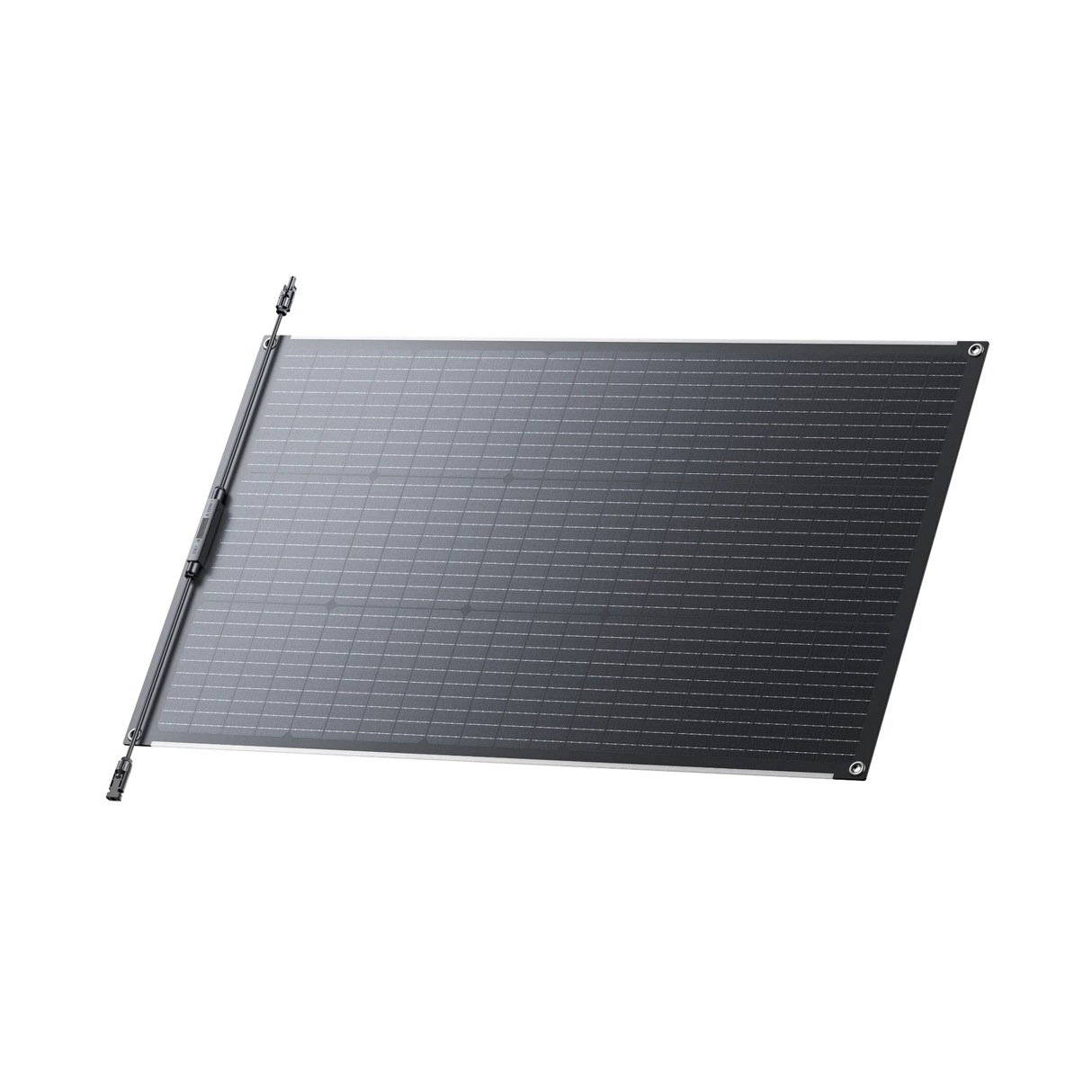

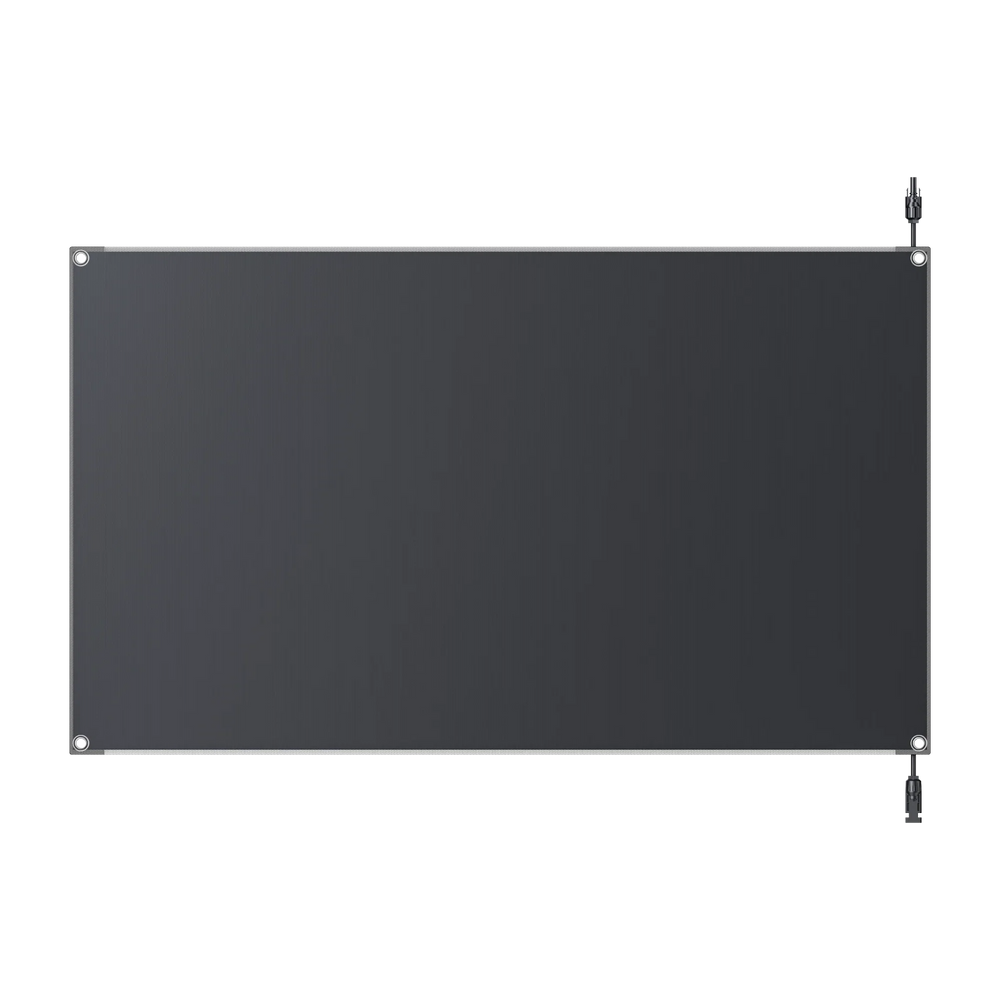

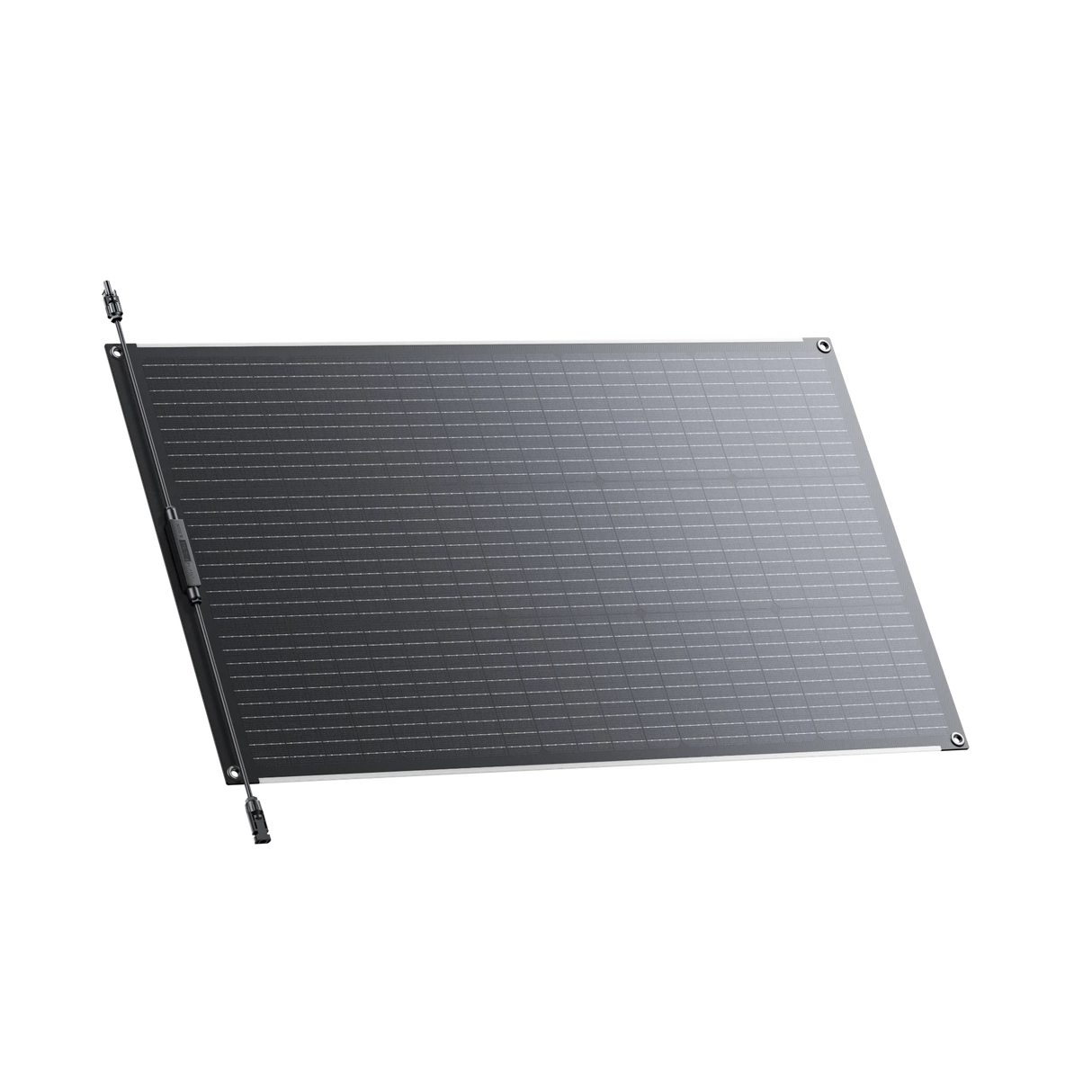

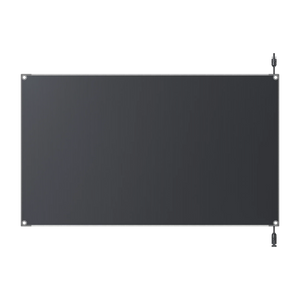

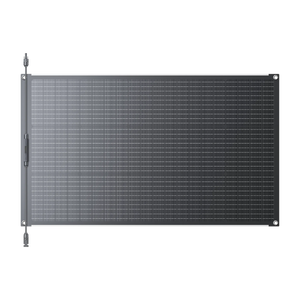

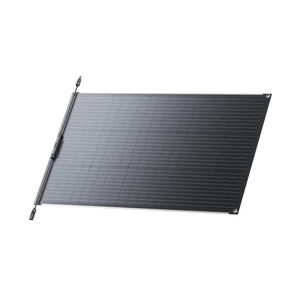

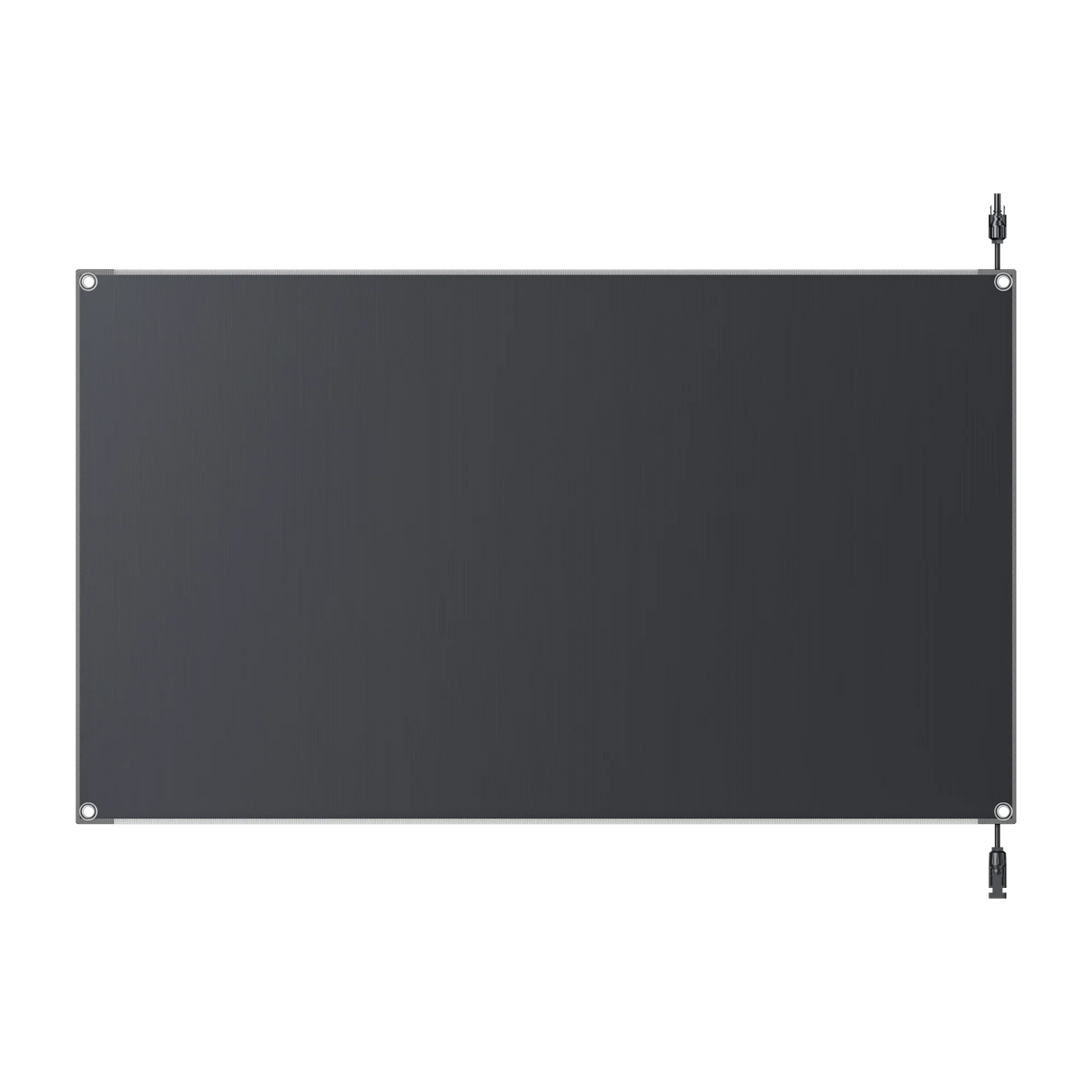

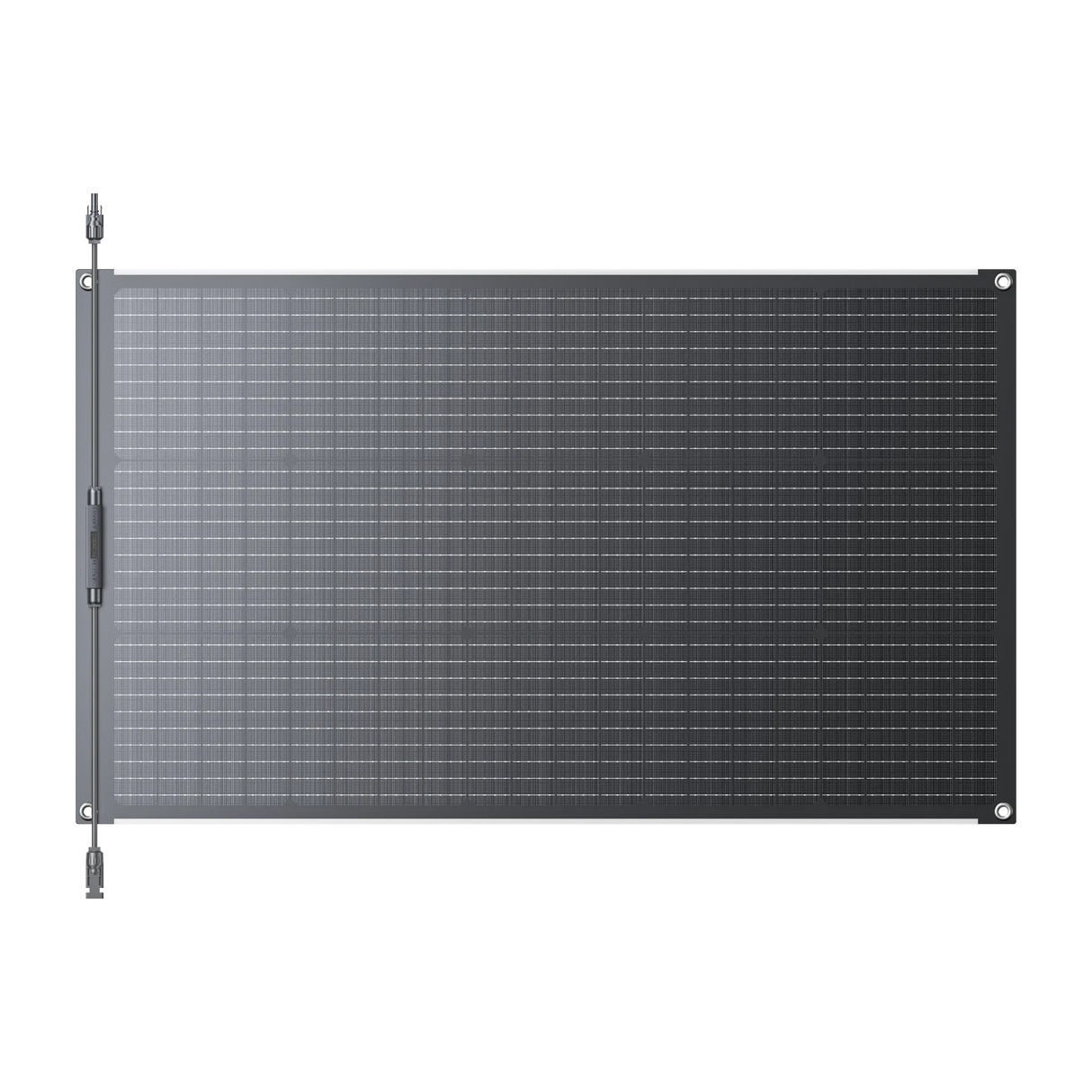

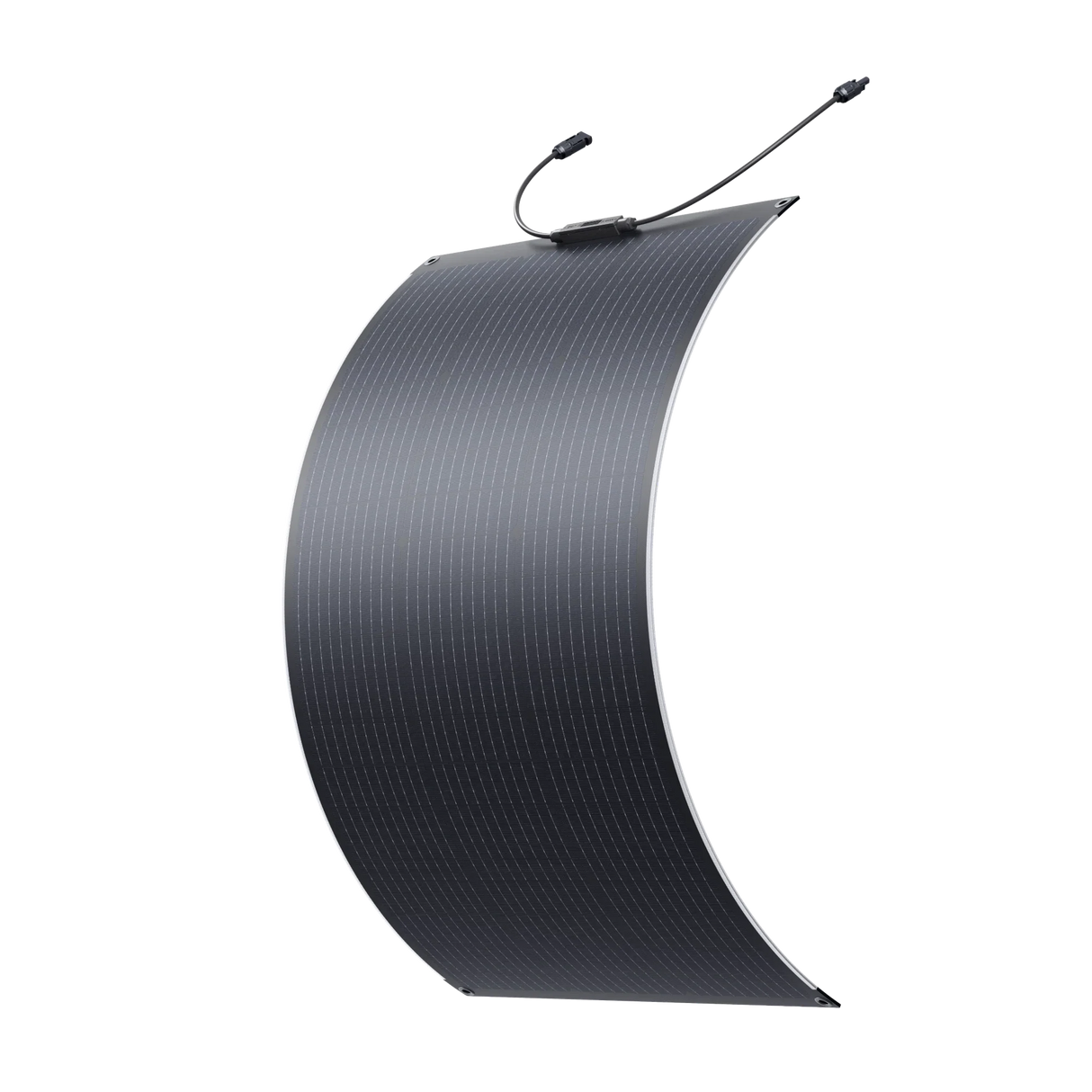

The BLUETTI PV100 FX is a lightweight, flexible 100W solar panel built for RVs, boats, and off-grid setups. It delivers up to 23.4% conversion efficiency — well above the 15–21% typical of standard panels — and its 240° bendable design conforms to curved or uneven surfaces like RV roofs and boat decks. Built with high-transparency HPC film, EVA cushioning, and a waterproof LBC backsheet, it's rated IP67 water-resistant and operates from -10°C to 65°C. Installation is drill-free: hang it with straps or ropes through the corner grommets, or use the adhesive backing. It connects via a standard MC4 connector and can be wired in series or parallel with additional panels (the RV Solar System supports up to 16 PV100 FX panels for 1,600W of total solar input). This is a set of two 100W panels.
Key Features
-
23.4% Conversion Efficiency: Stable solar intake for reliable energy on the road.
-
Ultra-Light 2.2kg: Easy on RV rooftops, boats, and portable setups.
-

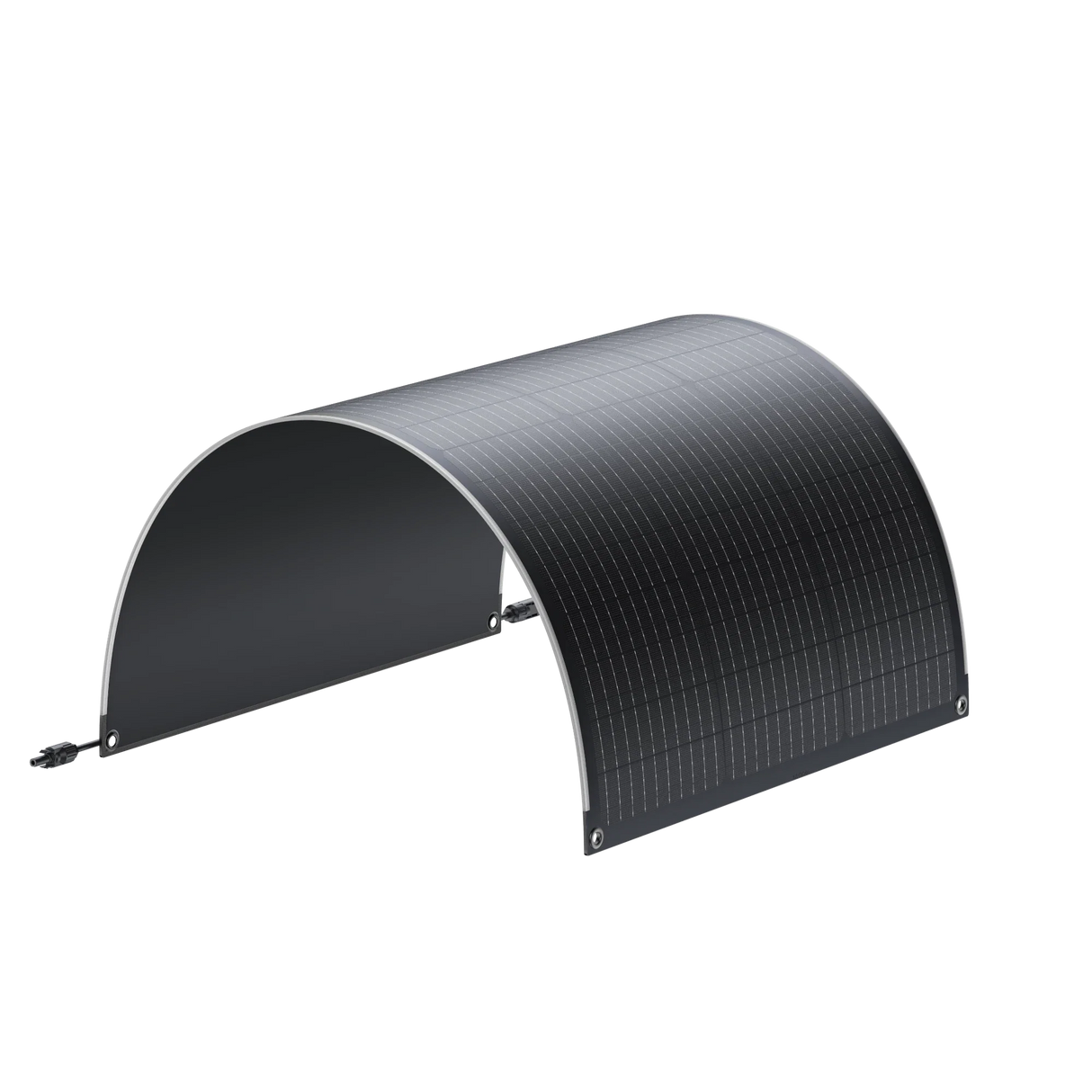

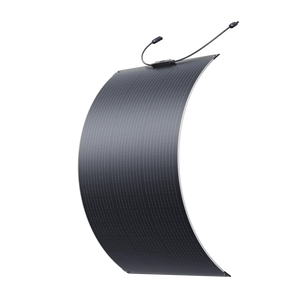

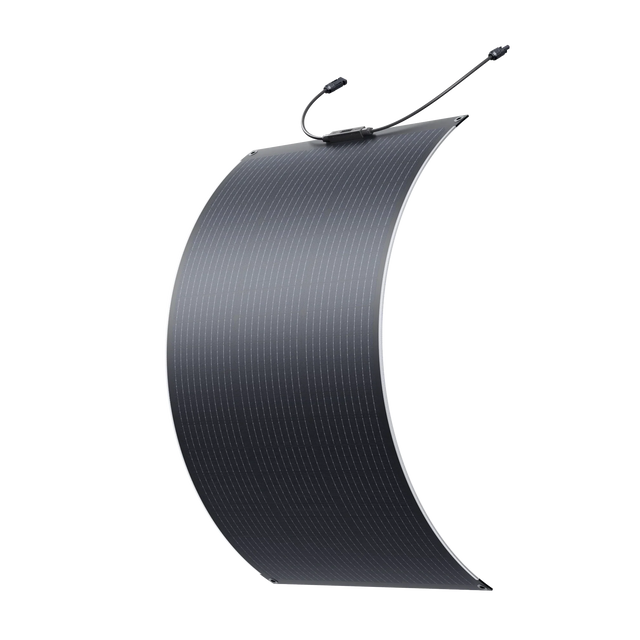

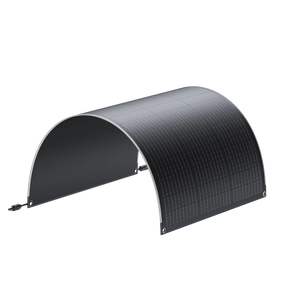

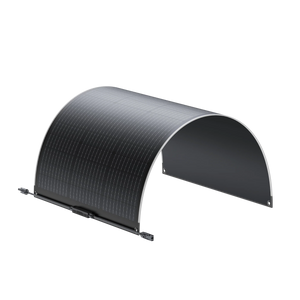

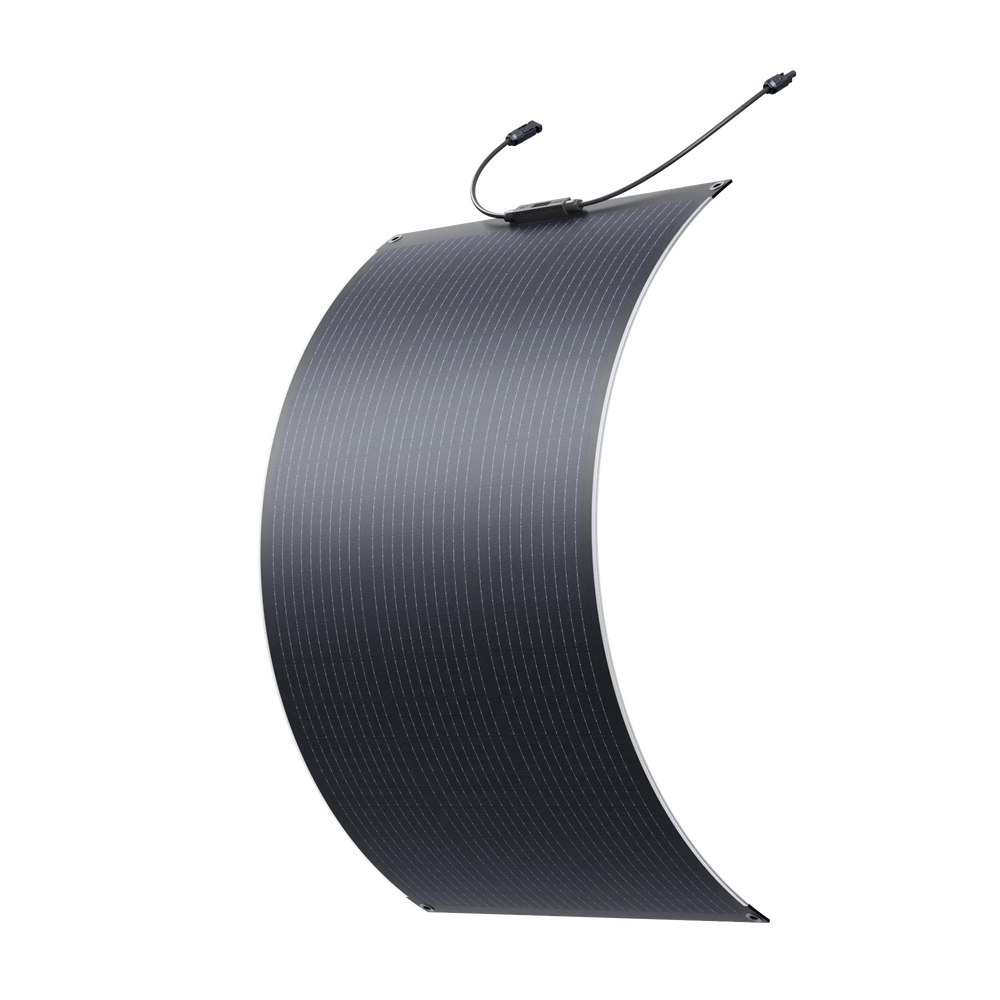

Flexible & Thin: Seamlessly adapts to curved or uneven surfaces (240° bendable).
-
Durable HPC Lamination: Weather-resistant and built to last; IP67 water-resistant.
-
100W Max Output: Sufficient power for long trips and off-grid adventures.
-
Easy, Drill-Free Installation: Straps, ropes through corner grommets, or adhesive backing.
Specifications
| Power |
| Maximum Power |
100W |
| Cell Lamination |
HPC (High-Performance Coating) |
| Cell Type |
Monocrystalline Silicon |
| Cell Efficiency |
Up to 23.4% |
| Open Circuit Voltage (Voc) |
41.4V |
| Short Circuit Current (Isc) |
3.05A |
| General |
| Connector |
Standard MC4 Connector |
| Weight |
4.85 lbs / 2.2 kg |
| Dimensions (Unfolded) |
39.4 x 23.2 in / 1,000 x 590 mm |
| Ingress Protection |
IP67 (water-resistant, not fully waterproof) |
| Operating Temperature |
-10°C to 65°C (14°F to 149°F) |
| Best Working Temperature |
25°C (77°F) |
| Warranty |
12 Months |
In the Box
Includes two PV100 FX panels with attached MC4 connector cabling.
